仪器简介：

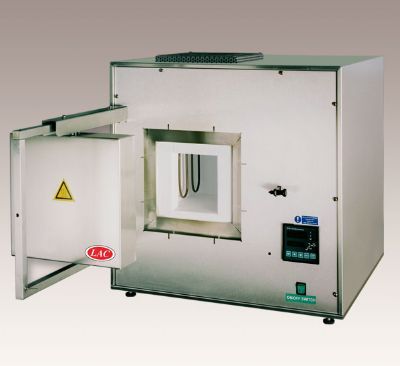

High-temperature Furnace VP
高温炈/span>VP
|
|
Application
High temperature furnaces are the ideal choice for sintering special glass e.g. quartz glass or for melting trials in the laboratory.
Description of the construction of the furnace:
*frameless construction
*KANTHAL SUPER heating elements
*door equipped with security limit switch
*feeder cables with uniphase or CEE three phase plugs
*furnace equipped with cooling fan
*type B thermocouple on the top of furnace chamber
*INDUSTRY controller allows saving of 30 control programs in the internal controller memory each program can consist of up to 15 steps operator may start the desired program on a preset date and time using the installed real time clock
Standard equipment of the furnace includes:
*programmable INDUSTRY controller
*manual door opening TO THE SIDE
Optional accessories:
*PC Interface R 232/485
*software for the monitoring and the recording of the temperature cycle
*temperature graphic recorder
*protective atmosphere supply for one or more gases
Benefits:
*rust-free
*attractive design
*very even temperature distribution at DIN 17052-1
*top insulating materials (low power consumption and quick achievement of the required temperature)
*high accuracy programmable temperature adjustment
*solid state relay (fluid and silent operation with minimum disturbance of the surrounding mechanisms)
*top workmanship and safety in service
|
应用范围９/span>
高温熔炉是烧结特殊玻璃如石英玻璃或实验室熔化试验的理想选择
结构描述９/span>
优质花纹不锈钢外売/span> 炉门入口使用的特殊防火材斘/span>
门可以旋转，便于调节关门角度 采用Kanthal硅钼棒加热，并由可控硅控刵/span> 炉门安装断电开兲/span> 带单组插头或三项东欧插座的供电电缅/span>
电控元件由风扇冷即/span> B型热电偶设于炉箱顶部
工业控制器的内部控制器可以保字/span>30条控制程序，每条程序由至尐/span>15步组成，操作员可以按照安装的实时钟表选择预设的时间和日期
标准设计包括９/span>
手动?/span>
优点９/span>
完全防锈
设计独特
优良的隔热保温效果，防止炉外壳水蒸汽凝结
**的温度分市/span>
**绝缘材料（耗电量低，可在要求的温度下迅速启动）
高精确度的温度调整系绞/span>
固态继电器（运转流畅且无声，因此对周围设施产生的震动极小）
完善的服务系统，包括加工车间、硬件及安全保险设备
额外收费附件９/span>
R 232/485界面
温度循环监控记录软件
温度循环图解记录?/span>
惰性气体保护装?/span>
|
技术参数：
类型 |
**温度 |
内积 |
外部尺寸＇/span>w*h*d（/span> |
内部尺寸（w*h*d（/strong> |
**输入 |
正常输入 |
重量 |
电压 |
LAC |
C |
L |
mm |
mm |
kW |
kW |
kg |
V |
VP 02/16 |
1600 |
2 |
660x680x740 |
130x150x135 |
3 |
3 |
90 |
230 |
VP 04/16 |
1600 |
4 |
660x680x740 |
130x160x180 |
3.5 |
3 |
100 |
230 |
VP 10/16 |
1600 |
10 |
850x1595x775 |
200x200x250 |
9 |
6 |
290 |
400 |
VP 20/16 |
1600 |
20 |
850x1595x775 |
250x250x310 |
12 |
8 |
315 |
400 |
VP 70/16 |
1600 |
70 |
1100x1750x1150 |
400x300x600 |
18 |
14 |
350 |
400 |
VP 02/17 |
1700 |
2 |
660x680x740 |
130x150x135 |
3 |
3 |
90 |
230 |
VP 04/17 |
1700 |
4 |
660x680x740 |
130x160x180 |
3.5 |
3 |
100 |
230 |
VP 10/17 |
1700 |
10 |
850x1595x775 |
200x200x250 |
9 |
6 |
290 |
400 |
VP 20/17 |
1700 |
20 |
850x1595x775 |
250x250x310 |
12 |
8 |
315 |
400 |
VP 70/17 |
1700 |
70 |
1100x1750x1150 |
400x300x600 |
18 |
14 |
350 |
400 |
主要特点９/strong>
1.完全防锈，设计独牸/p>
2.优良的隔热保温效果，低能耗，高热敇/p>
3.**的温度分布，热系数温?/p>
4.高温状态下热稳定显葖/p>
5.噪音小，机械安全性高
