气体循环箱式 PP
气体循环箱式 PP的图?/></a></div></div></div>         <div class=
参考报价:
1-5万元
品牌9/dt>
LAC
关注度:
1639
样本9/dt>
暂无
型号9/dt>
气体循环箱式 PP
产地9/dt>
捷克
信息完整度:
典型用户9/dt>
暂无
非金属电热元件:
其他
金属电热元件9/div>
其他
烧结气氛9/div>
其他
最高温度:
850ℂ/div>
索取资料及报件/a>
认证信息
高级会员 3平/div> 称: 苏州热优贸易有限公司
证:工商信息已核宝br /> 访问量:36871
手机网站
扫一扫,手机访问更轻杽/div>
产品简今/div>

仪器简介:

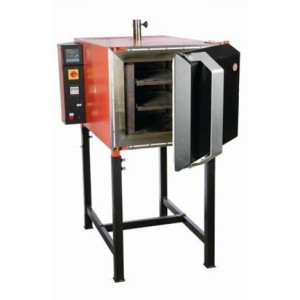

Tempering furnace with atmosphere circulation PP

气体循环箱式炈/span>PP

Application

Chamber furnaces with forced circulation of the inner atmosphere are used for special applications e.g. like tempering, preheating and annealing in industry or the preheating of moulds.

Description of tempering furnace:

*external jacket made from crimped sheet

*muffle made from stainless steel

*electrical installation on back side of furnace

*door secured with safety clamps

*door equipped with safety terminal switch

*ventilator placed in back section of furnace

*controller INDUSTRY allows saving of 30 control programs in the internal controller*memory, each program can consist of up to 15 steps, operator may start the selected program on a preset date and time using the installed real time clock

*thermocouple type K

*semi-conductor non-contact switch relay

The PP tempering furnace standard design includes:

*door opened manually on hinges to the right

*PID programmable controller

*shelf

*manually controlled ventilation flap

*stand

Optional accessories:

*graphic temperature recorder

*RS connection of controller to PC

*set for protective atmosphere supply

*semi-gastight design

*automatically controlled ventilation flap

*atypical stand

*additional shelves

*door opening to the left or upwards

*one-hand control of door opening

*automatic overpressure cooling

Benefits:

*stainless steel muffle with long life, high mechanical and corrosion resistance

*horizontal circulation ensures even distribution of air inside furnace according to DIN 17052-1

*first-rate insulating material means low operational expenses and excellent dynamics

应用范围9/span>

带有内部压力环流系统的箱式炉有一些特殊的应用范围,比如工业预热及退热,或模具预热、玻璃工业中需?*温度输送或良好通风性能的箱式炉用于特殊玻璃的冷却及镀膛/span>

结构描述9/span>

·不锈钢炉奖/span>

·不锈钢隔焰炉膚/span>
·电气系统安装在炉子的后面
·门由特备设计的卡扣关?/span>

·门上连接有断电开兲/span>
·炉子由耐火材料隔热
·加热装置设于炉子两侧

·炉后部设置水平通风设施

·工业控制器的内部控制器可以保字/span>30条控制程序,每条程序由至尐/span>15步组成,操作员可以按照安装的实时钟表选择预设的时间和日期

·K型热电偶

·半导体非接触的固态继电器

标准设计包括9/span>

·右开?/span>

·PID工业编程控制?/span>

·架子

·手动控制通风翻/span>

·底座

优点9/span>

·持久耐腐蚀且高度机械化的不锈钢消声?/span>

·根据DIN 17052-1,水平循环能够保证空气在炉内均匀循环

·一流的绝缘材料具有操作成本低并保持熔炉优良动态的优点良动态的优点

额外收费附件9/span>

·绘图温度记录?/span>

·控制器同电脑联接

·设立空气供给保护装置

·熔炉半气密设讠/span>

·自动控制通风阀?/span>
·非典型底?/span>

·额外的架孏/span>

·左开门或上开?/span>

·单手操控?/span>

·自动过压冷却
