RXH Series Hot Air Oven
简今/strong>(Brief)9/strong>
l 主要用于制药、食品、化工、电子行业产品的干燥、br style="-webkit-tap-highlight-color: rgba(255, 255, 255, 0); margin: 0px;"/> Mainly applied by pharmacy, foodstuff , chemical and electrical industry to dry the products.
l 不锈钢制作,主要由热源,风机,烘盘和烘车组成。以蒸汽或电源为热源,通过热交换器加热后,热风经风机牵引在箱内循环流动并与物料进行热交换,带走物料挥发的湿气,干燥物料、br style="-webkit-tap-highlight-color: rgba(255, 255, 255, 0); margin: 0px;"/> The machine is made with stainless steel, mainly consisting of heat source, blower, tray and shelf.
With steam or electricity as the heat source, the hot air heated by exchanger will circularly flow into inner oven by blower and meanwhile take away the moisture volatilized from materials to finally dry the materials.

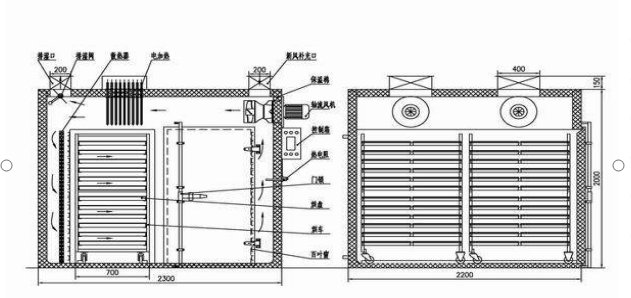

结构示意图(Schematic diagram(/strong>
技术参?Technical Specifications):
型号Model | RXH-O | RXH-I | RXH-Ⅰ/td> | RXH-Ⅱ/td> | RXH-IV | |
产量Capacity | 60kg | 120kg | 240kg | 360kg | 480kg | |
电加热功率Heat Power | 9KW | 15KW | 30 KW | 45 KW | 63KW | |
风机功率Fan Power | 0.55kw | 0.55kw | 1.1kw | 1.65kw | 2.2kw | |
蒸汽消耗Steam Consumption | 10kg/h | 20kg/h | 45kg/h | 71kg/h | 80kg/h | |
散热面积Radiation Area | 5㎠/td> | 20㎠/td> | 40㎠/td> | 80㎠/td> | 100㎠/td> | |
风量Blast | 3450m³/h | 3450 m³/h | 6900 m³/h | 10350 m³/h | 13800 m³/h | |
温差Temperature Deviation | ±2ℂ/td> | ±2ℂ/td> | ±2ℂ/td> | ±2ℂ/td> | ±2ℂ/td> | |
烘盘数量Tray Number | 24 | 48 | 96 | 144 | 192 | |
烘车数量Shelf Number | 1 | 2 | 4 | 6 | 8 |
外形尺寸Overall Size | 1.4*1.2*2.3m | 2.3*1.2*2.3m | 2.3*2.2*2.3m | 3?*2.2*2.3m | 4.46*2.2*2.3 |
