本机是一种将潮湿粉体混合料,在制粒机左右挤压螺杆的挤压下,轴向通过筛网挤出合格颗粒的一种专用设备 该专用设备主要适用于医药,化工,食品,等行业中制造各种规格的颗粒,颗粒可以定?选配切断装置),成品经干燥后可制成各种制品。例:食品用鸡精,各种冲剂,化工制品等、br style="-webkit-tap-highlight-color: rgba(255, 255, 255, 0); margin: 0px;"/> This machine is a kind of special equipment that extrudes qualified particles through the screen in the axial direction of the wet powder mixture under the extrusion of the left and right extrusion screws of the granulator. This special equipment is mainly suitable for the manufacture of various specifications of particles in the pharmaceutical, chemical, food, and other industries. The particles can be fixed in length (optional cutting device), and the finished product can be made into various products after being dried. Example: Chicken Essence for Food, Various Granules, Chemical Products, etc.
二、设备工作原理(How the equipment works):
电机动力由三角带轮减速传动至主机齿轮箱,经齿轮箱内部各传动部件分配动力,传动至各制粒左右螺杆运转,原料由加料口加入,物料经制粒左右螺杆挤压作用,向前端制粒模板强制压料,并附带一定的混合作用,物料挤入主挤压机腔内后,经主桨特殊形状的桨叶向外强制挤出,挤入到桨叶和制粒模板的间隙内,物料经挤压后由制粒模板向外出料+strong style="-webkit-tap-highlight-color: rgba(255, 255, 255, 0); margin: 0px;">(再经过外部制粒模板的切料铲刀均匀地定长切?,制成合格成品、br style="-webkit-tap-highlight-color: rgba(255, 255, 255, 0); margin: 0px;"/>The power of the motor is decelerated and transmitted to the main gear box by the V-belt wheel. The power is distributed by the transmission parts inside the gear box and transmitted to the left and right screws of each pelletizing. The raw materials are added from the feeding port. The granulation template is forced to press the material with a certain amount of mixing effect. After the material is squeezed into the cavity of the main extruder, it is forced to be extruded out through the special-shaped blade of the main blade, and squeezed into the gap between the blade and the granulation template. Inside, the material is extruded and discharged from the
granulation template, (then the material is cut by the cutting blade of the external granulation template evenly to a fixed length) to make qualified finished products.
三、机器特点(Machine characteristics):
螺杆挤出造粒机分单螺杆和双螺杆型,挤出形式有前出料和侧出料两种。经混合、捏和的湿物料或低软化点(一般指小于50℃)物料在螺杆输送、挤压作用下,从机头开孔模板挤出,再经过干燥或冷却颗粒成品,从而实现将粉状产品改变为均匀的颗粒产品的目的。颗粒形状为圆柱状,成品颗粒直径可由摸板开孔孔径调节和控制、/strong>Screw extruder granulator is divided into single screw type and twin screw type. The extrusion type has two types: front discharge and side discharge. The mixed and kneaded wet materials or materials with low softening point (generally less than 50°C) are conveyed and extruded by the screw from the die plate of the die, and then the finished product is dried or cooled to realize the powder The purpose of changing the shape product into a uniform granular product. The particle shape is cylindrical, and the diameter of the finished particle can be adjusted and controlled by the hole diameter of the die plate.
前出料特点:本机适用于流动性较好,无热敏性物料制粒。颗粒紧密,产量较高,制品颗粒较大,可增配水冷系统及切粒系统。Front discharge characteristics: This machine is suitable for granulating materials with good fluidity and no heat sensitivity. The particles are compact, the output is high, and the product particles are larger, and the water cooling system and the pelletizing system can be added.
侧出料特点:本机针对前出料机型无法制粒的特定情况,可选用侧出料机型,与前出料机型相比制品颗粒较小,产能较高。Side-discharge characteristics: This machine can choose the side-discharge model for the specific situation where the front-discharge model cannot pelletize. Compared with the front-discharge model, the product has smaller particles and higher production capacity.

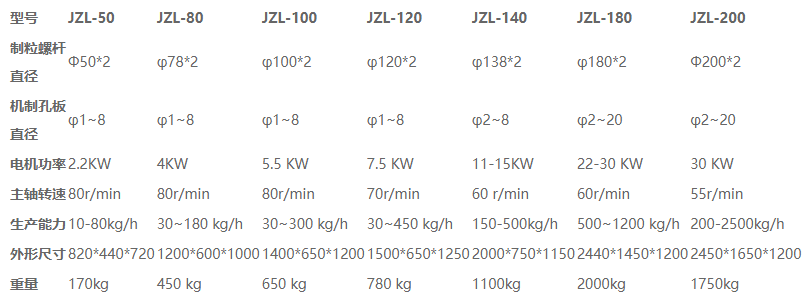

四、技术参数:
