OMC系列·无动力气流分级机
OMC Series·Unpowered Air Flow Classifier
工作原理9/strong>
物料被定量加入到主机上方腔体内,在导流环的作用下被初步分散,在沿筒壁下落的过程中,又收到从下方补风口中进入的二次气流的进一步打散,该打散效果受到风量的影响,使用时可以通过调节分散环与筒壁的相对上下位置来调节,进而影响分选的精度,较细的颗粒会在上升气流的作用下向中心汇聚,?终从*上方的出料口中离开,通过管道进入后道收尘设备(旋风分离器、布袋除尘器等),较粗的颗粒将继续沿筒壁而下,从*下端被卸出、/span>
working principle:
The material is quantitatively added into the cavity above the main unit, and is initially dispersed under the action of the deflector ring. In the process of falling along the wall of the cylinder, it is further dispersed by the secondary air flow entering from the supplementary air inlet below. The scattering effect is affected by the air volume. When using it, it can be adjusted by adjusting the relative up and down positions of the dispersing ring and the cylinder wall, thereby affecting the accuracy of sorting. The finer particles will converge toward the center under the action of the upward airflow, and eventually leave from the top discharge port, it enters the downstream dust collection equipment (cyclone separator, bag dust collector, etc.) through the pipeline, and the coarser particles will continue to go down the cylinder wall and be discharged from the lowermost end.
设备特点9/strong>
主机不需要任何动件,因此能耗低,后期维护成本低廉,并且处理量相对较大、/p>
通过调节分散环位置即可调节出料粒度,操作简单、/p>
适用于为去除原料中的过细粉而产能要求又较高的物料分级、/p>
1. The main unit does not need any moving parts, so the energy consumption is low, the maintenance cost in the later period is low, and the processing capacity is relatively large.
2. The particle size can be adjusted by adjusting the position of the dispersion ring, and the operation is simple.
3. It is suitable for the classification of materials with high production capacity requirements to remove the excessively fine powder in the raw materials.

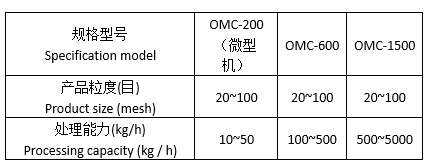

技术参数表(Technical Data Sheet)9/strong>
注:具体配置及处理效果需根据物料性质与加工要求确认,可与我司工程师沟通或来料试验、/span>
