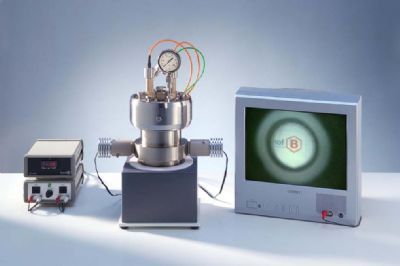

Chemtron Camera 照相反应釜详细说昍/span>* 2 块相对的石英观察窗， ? = 21mm
* 内部照明系统
* 快开夹密?/p>
* 容积 1200ml-6000ml
* Pmax. 50 bar/2100 psi
* Tmax. 300ℂ/p>
* ? x i-height 100x163 mm
容积 |
1800 mL |
温度 |
300 max. (230 with FPM) |
压力 |
25bar max. |
釜体 |
Made of SS 316 TI |
釜盖 |
Made of SS 316 TI |
阀门与配件 |
Made of SS 316 TI |
密封圇/span> |
FPM (Viton) |
Chemtron Camera 照相反应釜套装技术参?/span>
名称
|
产品描述
|
订货叶/span>
|
带照相功能设计的反应釜套裄/span>
|
Reaction vessel set with double wall circulation jacket for vessel heating with circulation heaters reactor lid quicklock chain made of SS-316TI O-seal ring made of Viton，standard fittings made of SS-316TI (consist of one regulating valves and rupture disc for overpressure protection) and one gas valve made of SS-316TI
|
NR1500XX1
|
RV 100 磁耦轴找/span>
|
Magnetic clutch RV 100 made of SS-316TI with Reed contact，torque 100 Ncm 300 max. viscosity 4000mPas at max.10000ml. EX-proof Zone 1
|
5727090
|
锚式搅拌浅/span>
|
NR-1500 Anchor stirrer made of SS-316TI
|
NR1500XX2
|
气体阀?/span>
|
gas valve made of SS-316TI
|
NR1500XX3
|
釜盖照相单元安装叢/span>
|
Port connection on Reactor Lid for Camera Window made of SS-316TI with Illumination system and camera window
|
NR1500XX4
|
照相单元
|
Camera System with adapter optics according ExdIIBT4 or better for Zone 1
|
NR1500XX5
|
防爆压力测量单元
|
Explosion proof Pressure gauge with pressure transducer made of SS-316 L/S31603 25bar 8mm tube connection according ExdIIBT4 or better for Zone 0
|
NR1500XX6
|
防爆Pt-100传感?/span>
|
Explosion proof PT-100 resistance thermometer 250mm1.5 mm according ExdIIBT4 or better for Zone 1
|
NR1500XX7
|
防爆搅拌马达
|
EX-proof stirrer drive made of stainless steel fine control valve for speed regulation operation pressure max. 6bar air consumption 260l/min (at 6bar) torque 200Ncm according ExdIIBT4 or better for Zone 1 (Compressed air is required to operate the stirrer drive)
|
5780950
|
PTFE 高压泄压箠/span>
|
PTFE High pressure tubing (2.5m; ID 9mm; 550bar) Exhaust tubing for rupture discs G3/8" female (inlet) -G3/8" male (outlet)
|
5701017
|
PTFE高压
进气箠/span>
|
Stainless steel braided PTFE High pressure tubing (2m; I) 9mm; working pressure 200bar at 20 ) Gas feeding tube?mm tube connections
|
5701077
|
消耗品
|
||
O- 型圈
|
O-ring 1153.5 mm made of Viton for reactors without PTFE-lining
|
5757903
|
O- 型圈
|
O-ring 1153.5 mm made of FFKM (Perlast) for reactors without PTFE-lining
|
5054071
|
爆破牆/span>
|
Rupture disc made of Monel D 24mm 20bar with PFA protection foil and certificate
|
5219065
|
