粉体物性测试仪功能描述：Function description

通过测试休止角（安息角）、质量流速、体积流速、表观密度、松装比、体积密度、堆积密度及松散密度等数据来评定粉末流动能力；采用多规格可更换出口孔径之漏斗;根据测试粉体流动能力状况来选择配置出口漏斗孔径�?出口控制档板，秒表计时功胼�配置标准不锈钢量筒，固定圆盘法角度测�?本品为粉体流动性测试综合性测量平�?

粉体物性测试仪参数资料 Parameters
1．漏斗：由圆柱形装料筒配置多个可更换漏斗组成，为不锈钢材料制成，

Funnel: the cylindrical loading cylinder is provided with a plurality of replaceable funnel, the funnel is made of SS,

2.可更换漏斗口径mm�?.5�?.0�?.0�?.0�?.0�?.0�?.0�?0�?4�?5�?6�?7�?8�?5（根据用户需求选购规格,标配3个）

Replaceable funnel diameter mm: 2.5; 4.0; 5.0; 6.0; 7.0; 8.0;9.0; 10; 14; 15; 16; 17; 18; 25 (according to user needs optional, standard 3pcs)

3.时间范围Time range�?-9999S.

4.组成：由漏斗、支撑架、秒表、钢尺、毛刷、接料筒、水平仪、工作平台、不锈钢量筒、亚克力圆盘、角度测量件.

Composition: funnel, support bracket, stopwatch, ruler, brush, feed barrel, a level working platform, stainless steel cylinder, acrylic disc, angle measuring device.

5.漏斗容积funnel volume� 200ml.

6.不锈钢量筒容积有The SS cylinder volume has 25ml�?00ml�?00ml�?50ml�?00ml（根据用户需求选购according to user needs optional�

7.流速测试：体积法和质量法获得质量与时间，体积与时间关系.

The flow rate test: the relationship between mass and time, mass and time obtained by fixed volume method and fixed mass method.

8.休止角（安息角）：采用定圆盘直径法测�?圆盘直径100mm.The angle of repose (repose angle): Measurement using fix � disk diameter, disc diameter 100mm.

9.密度测量：两种方法：质量和体积法；已知质量粉体自然填充获得体积；已知体积容器自然填充之粉体质野�/span>.

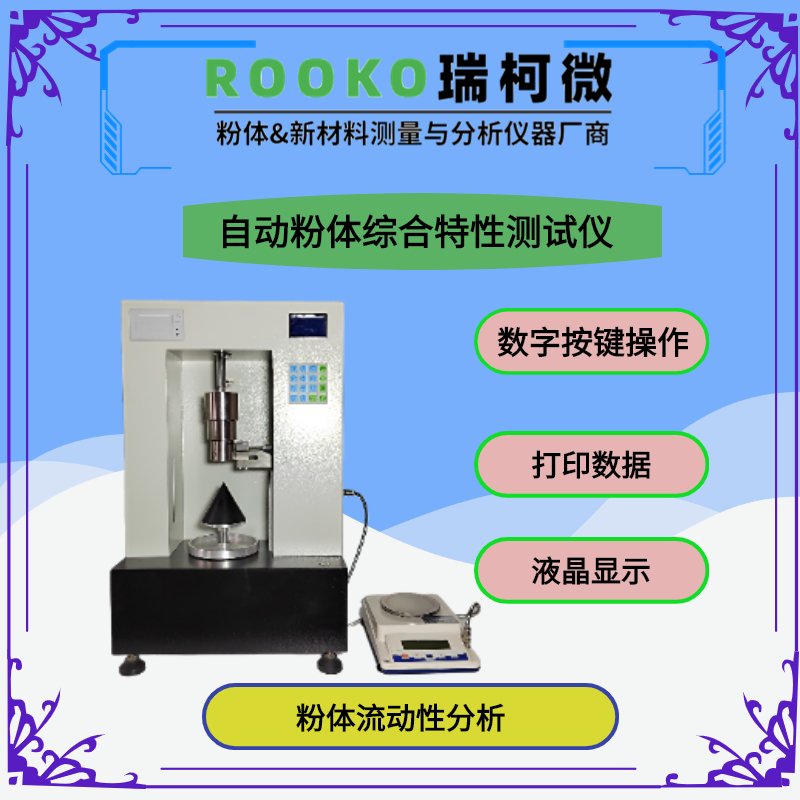

粉体物性测试仪
