L波段掺铒光纤放大?/p>
L波段EDFA，波长覆?569-1604nm，输?3dBm-10dBm，输出功?3-20dBm，可提供OEM服务、/strong>
Description: |

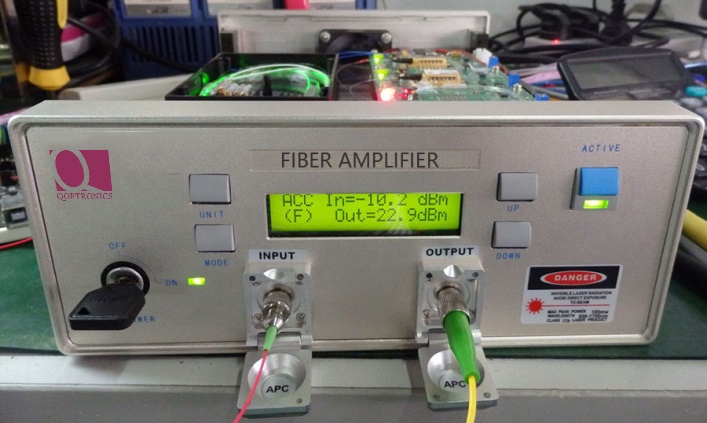

TheL Band EDFA (Erbium doped Fiber Amplifier) operating wavelength 1569-1604nm optical input power -3-10dBm optical output power 13-20dBm. OEM model is well available on customer’s special request. |
Applications: |
Features: |
Analog and digital CATV system Long distance transmission system Access network LANs and WANs |
Intelligent MPU monitor High output and high gain Low noise figure User friendly interface RS-485 |
Parameter |
Unit |
Specification |
||
Min |
Typ. |
Max |
||
Part No. |
- |
LQ-EDFAL-P-A-PW-PF-C |
||
Operating wavelength |
nm |
1569 |
1604 |
|
Optical input power |
dBm |
-3 |
0 |
10 |
Optical output power |
dBm |
13 |
20 |
|
Noise figure(0dBm input) |
dB |
5 |
6.5 |
|
PDG |
dB |
0.5 |
||
Pump remnant to output |
dBm |
-30 |
||
Pump remnant to input |
dBm |
-30 |
||
Return loss(EDFA off) |
dB |
40 |
||
Power supply |
V(AC) |
100 |
220 |
240 |
Power Consumption |
W |
8 |
16 |
25 |
Operating temperature |
ℂ/span> |
-5 |
55 |
|
Storage Temperature |
ℂ/span> |
-20 |
70 |
|
Users interface |
- |
LCD shows internal operating parameter LED shows operation status and alarm |
||
Network interface |
- |
RJ-45 or RS-232 or RS-485 |
||
Dimensions (LWH) |
mm |
907019(Module) 48338544(1U 19" rack) or 32022090(Benchtop) etc |
||
B=Power amplifier，L=In-line amplifier，P=Pre-amplifier
PW: Output power in dBm example:10-10dBm ?3-13dBm?0-20dBm?7-27dBm
PF:Pigtail fiber＋/span>0=250um?=900um?=2mm?=3mm
C:Connector，FU=FC/UPC，FA=FA/APC，SA=SC/APC
