C+L波段掺铒光纤放大?/p>

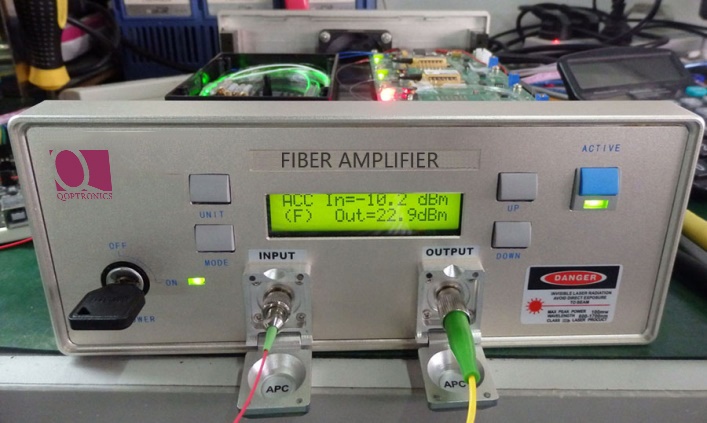

C+L Band EDFA (Erbium doped Fiber Amplifier)
PDF资料下载
C+L波段EDFA，波长覆?525-1604nm，输入光功率-3?0dBm，输出功?5-24dBm
可按需提供，我们咨询、/p>
Parameter |
Unit |
Specification |
||
Min |
Typ. |
Max |
||
Part No. |
- |
LQ-EDFACL-P-A-PW-PF-C |
||
Operating wavelength |
nm |
1525 |
1604 |
|
Optical input power |
dBm |
-3 |
0 |
10 |
Optical output power |
dBm |
15 |
24 |
|
Noise figure(0dBm input) |
dB |
5.5 |
7.3 |
|
PDG |
dB |
0.5 |
||
Pump remnant to output |
dBm |
-30 |
||
Pump remnant to input |
dBm |
-30 |
||
Return loss(EDFA off) |
dB |
40 |
||
Power supply |
V(AC) |
100 |
220 |
240 |
Power Consumption |
W |
8 |
25 |
50 |
Operating temperature |
ℂ/span> |
-5 |
55 |
|
Storage Temperature |
ℂ/span> |
-20 |
70 |
|
Users interface |
- |
LCD shows internal operating parameter LED shows operation status and alarm |
||
Network interface |
- |
RJ-45 or RS-232 or RS-485 |
||
Dimensions (LWH) |
mm |
907019(Module) 48338544(1U 19" rack) or 32022090(Benchtop) etc |
||
B=Power amplifier，L=In-line amplifier，P=Pre-amplifier
PW: Output power in dBm example:10-10dBm ?3-13dBm?0-20dBm?7-27dBm
PF:Pigtail fiber＋/span>0=250um?=900um?=2mm?=3mm
C:Connector，FU=FC/UPC，FA=FA/APC，SA=SC/APC
