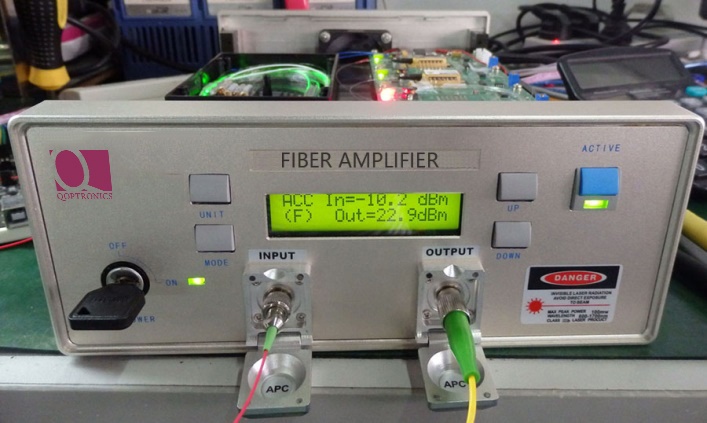

1.0um掺镱光纤放大?/p>
1.0um YDFA(Ytterbium doped Fiber Amplifier)
PDF资料下载
1um摻镱光纤放大器，工作波长1030-1070nm，输入光功率0-10dBm，输出光功率13-22dBm
其他波长放大器，我们
Parameter |
Unit |
Specification |
||
Min |
Typ. |
Max |
||
Part No. |
- |
LQ-YDFA-P-A-CM-PW-PF-C |
||
Operating wavelength |
nm |
1030 |
1050 |
1070 |
Optical input power |
dBm |
0 |
3 |
10 |
Optical output power |
dBm |
13 |
22 |
|
Noise figure(0dBm input) |
dB |
5 |
6 |
|
Pump remnant to output |
dBm |
-30 |
||
Pump remnant to input |
dBm |
-30 |
||
Return loss(EDFA off) |
dB |
40 |
||
Power supply |
V(AC) |
100 |
220 |
240 |
Fiber type |
- |
SM-28 fiber |
||
Power consumption |
W |
8 |
16 |
25 |
Operating temperature |
ℂ/span> |
-5 |
55 |
|
Storage Temperature |
ℂ/span> |
-20 |
70 |
|
User interface |
LCD shows internal operating parameter LED shows operation status and alarm |
|||
Network interface |
RS232，LANorUSB |
|||
Dimensions (LWH) |
mm |
907019(Module) 48338544(1U 19" rack) or 32022090(Benchtop) etc |
||
Order Information９/span>LQ-YDFA-P-A-CM-PW-PF-C
P:Package＋/span>B-Benchtop＋/span>M-Module，U-1U 19 rack
A:Application＋/span>example :B=Power amplifier，L=In-line amplifier，P=Pre-amplifier
CM:Control mode，ACC=Automatic current control，APC=Automatic power control
AGC=Automatic Gain Control
PW: Output power in dBm example:10-10dBm ?3-13dBm?0-20dBm?7-27dBm
PF:Pigtail fiber＋/span>0=250um?=900um?=2mm?=3mm
C:Connector，FU=FC/UPC，FA=FA/APC，SA=SC/APC
