Application

Furnaces are used in laboratories for heat-treatment testing of various samples, when the agresive fouling, which would pelt with the spirals, can be formed.

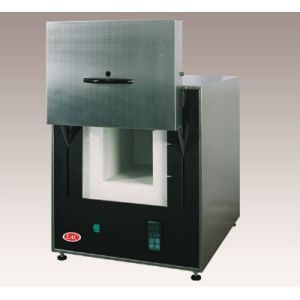

Description of the construction of the furnace:
- frameless conctruction created by the hooped rustless metal plate,
- portal of the door of the fireproof adapting pieces,
- in the peep-hole of the door the protective blue glass,
- door of the hooped rustless metal plate tank shaped ,
- thrust is extrapolated by the ductile springs,
- muffle insulated by the sedge of the mineral grain and cased by the insulation desks,
- door fulfilmed by the insulation desk,
- heating spiral winding-up on the muffle,
- door equiped by the security limit switch,
- feeder cables procurated by the uniphase bolts,
- furnace equiped by the cooling fan,
- controller HT 40AL enables controlling to standard value,
- thermocouple of the type S, placed on the back side

Standard equipment of the furnace covers:

- controller HT 40AL
- manualy door opening up

Like an accessories as an extra we are bidding:

- controller INDUSTRY
- rotary table
- interface R 232/485
- exhaust fan
- software for the monitoring and the record of the temperature cycle
- protective atmospher supply
- calibration of the entry of the measuring controller

Benefits:

- rustless fulfilment
- attractive design
- draught prevenes the devaporation of the vapours at firing and markedly opprobrious the temperature of the mantle
- perfect lay of the temperature
- top insulating materials ( low power consumption, possibility of the fast start on the asked temperature )
- programmable temperature adjustment with the high accuracy
- solid state relay (more fluent and silent running,the minimum disturbance of the surrounding mechanism )
- perfect workshop processing,the hardware and safety in service

应用范围９�/strong>

熔炉被用于实验室不同样品的热处理的测试，并能有效的阻止电热元件在加热过程中受到腐蚀物质的污染、�br/>
结构描述９�/strong>

- 炉壳采用优质花纹不锈钢制戏�br/>- 电炉入口安装有防火模坖�br/>- 门上安装观察孓�br/>- 弹簧助推式上开�?br/>- 门由氧化铝纤维整体模块组戏�br/>- 电热丝环绕在马夫炉膛的四�?br/>- 门上安装有断电开兲�br/>- 单相的供电电缅�br/>- 电控元件通过电子风扇降温
- 控制器HT40AL �?个升温段�?个恒温段
- S型热电偶

标准设计包括９�/p>

- HT40AL控制�?br/>- 手动的上开�?/p>

优点９�/strong>

- 实现不锈
- 吸引人的设计
- 优良的隔热保温效果，防止炉外壳水蒸汽凝结
- 顶部绝缘材料( 低功率消�? 在被要求的温度上快速开始的可能�?
- 可编程的高精确度的温度控刵�br/>- 固态继电器SSR (流畅和无声的运转, 周围机械装置�?小干�?
- **的车间操作， 硬件和使用中的安全设夆�/p>

额外收费附件９�/strong>

- 控制器工丙�br/>- 界面R 232/485
- 排气风扇
- 监控软件和温度循环的记录
- 气体保护装置
