流动方向9/p>换向
连接通道9/p>其他
驱动方式9/p>电动
输送物料:
--连接方式9/p>对夹
材质9/p>不锈钡/span>
口径9/p>--
压力9/p>--
设计标准9/p>--
看了熔体齿轮泵的用户又看亅/p>
虚拟号将 180 秒后失效
使用微信扫码拨号

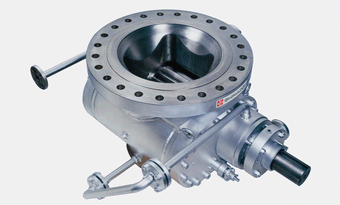

岛津齿轮泵以其高温高压及超强的耐腐蚀性特点,在国内外的聚酯化工的广泛应用。型号有SBJ等系列产品、/p>
Large diameter suction port insures the perfect discharging of high viscosity liquids direct mounting under vacuum reactor.
Capable of raising pressure from vacuum to 25 MPaG.
Pump capacity range : ?1,000cm3/rev. from 45cm3/rev. to 8,000cm3/rev.
(Pumps in operation for PET and PA)
Compact type with discharge pressure of Max. 7 MPaG.
Design temperature : 350ℂbr/>Type of Shaft Seals :
*GP = Gland Packing + Bush + Cooling
*LF = Labyrinth (Inside of Bush) + Cooling + Gland Packing Sub
*LM = Labyrinth (outside of Bush) + Cooling + Gland Packing Sub
*M = Double Mechanical Seal
In the case of high viscosity, the SBJ series can deliver up to 25MPaG.
Design temperature : 350ℂ/p>
Compact type with discharge pressure of Max. 7MPaG
Design temperature : 350ℂ/p>
Most suitable for Raising pressure from vacuum to 2 MPaG.
Design temperature : 350ℂ/p>
Most suitable for reliable feed under high suction pressure.
The SBJ-LL Gear Pump is used as a booster pump where suction pressures of over 1 MPaG are encountered.
Design temperature : 350ℂ/p>
