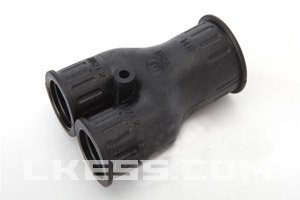

产品编号 | LKE-Y |
---|---|
产品材质 | 采用TPE橡胶原料制成 |
工作温度 | -40 ~ ?00ℂ/th> |
防护等级 | IP65 |
产品颜色 | 黑色 |
产品参数9/p>
型号 | 适配软管尺寸 | Ф11 mm | Ф12 mm | ФB1 mm | ФB2 mm | D mm | C mm |
---|---|---|---|---|---|---|---|
LKE-Y-3×10 | 3×10 | 9.5 | 9.5 | 17.5 | 17.5 | 54.5 | 36.5 |
LKE-Y-2×10.0/1×13.0 | 2×10.0/1×13.0 | 10.0 | 7.0 | 20.0 | 17.0 | 63.0 | 36.0 |
LKE-Y-3×13.0 | 3×13.0 | 10.0 | 10.0 | 20.0 | 20.0 | 65.0 | 43.0 |
LKE-Y-2×13.0/1×15.8 | 2×13.0/1×15.8 | 12.5 | 10.0 | 23.0 | 20.0 | 66.0 | 45.0 |
LKE-Y-3×15.8 | 3×15.8 | 12.5 | 12.5 | 23.0 | 23.0 | 68.0 | 46.0 |
LKE-Y-2×15.8/1×21.2 | 2×15.8/1×21.2 | 18.0 | 14.0 | 29.5 | 25.0 | 75.0 | 52.0 |
LKE-Y-2×15.8/1×28.5 | 2×15.8/1×28.5 | 25.5 | 14.0 | 36.5 | 25.0 | 75.0 | 52.0 |
LKE-Y-3×18.5 | 3×18.5 | 15.0 | 15.0 | 26.5 | 26.5 | 81.0 | 54.5 |
LKE-Y-321.2 | 321.2 | 18.0 | 18.0 | 29.5 | 29.5 | 82.5 | 62.5 |
LKE-Y-2×21.2/1×28.5 | 2×21.2/1×28.5 | 25.5 | 18.0 | 36.5 | 29.5 | 68.0 | 60.5 |
LKE-Y-2×28.5/1×34.5 | 2×28.5/1×34.5 | 31.5 | 25.5 | 42.5 | 36.5 | 86.0 | 77.0 |
LKE-Y-2×34.5/1×42.5 | 2×34.5/1×42.5 | 39.7 | 31.5 | 52.5 | 42.5 | 98.5 | 89.0 |
LKE-Y-2×42.5/1×54.5 | 2×42.5/1×54.5 | 52.0 | 39.7 | 65.0 | 52.5 | 116.0 | 109.5 |
