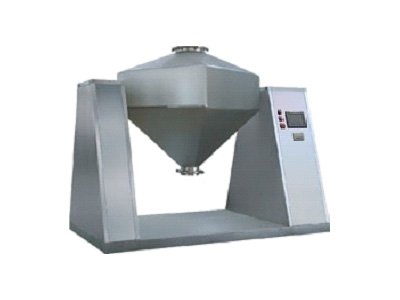

HF 系列方锥型混合机

----------------------------------------------------------------------------------------------------------------

方锥型混合机概述Description

HF系列方锥型混合机是一种广泛应用于制药、化工、冶金、食品、轻工、饲料等行业的新颖物料混合机。该机能非常均匀地混合粉体或颗粒，使混合后的物料达到**效果、�/p>

HF series square cone mixer is a widely used in pharmaceutical, chemical, metallurgy, food, light industry, feed industry, new material mixer. The machine can be very evenly mixed powder or granules, so that the mixture of materials to achieve the best results.

----------------------------------------------------------------------------------------------------------------

方锥型混合机原理 Principle

将物料装入方锥形密闭混合桶内，料斗对称的轴线与回转轴轴线成一夹角，不同组分物料在密闭的料斗中进行三维空间运动，产生强烈翻转和扩散收缩作用，达�?*的混合效果、�/p>

The mixed material into a confined square tapered barrel, hopper and rotary axis of symmetry axis into an angle, different components of the material in the hopper in a closed three-dimensional space, movement, and spread a strong contraction flip, the best mixed results.

----------------------------------------------------------------------------------------------------------------

方锥型混合机特点 Features

◍�/span> 整机设计新颖、结构紧凑、外形美观、混合均匀度达99％，体积装料系数�?.8、�/p>

◍�/span> 回转高度低、运转平稳，性能可靠，操作方便、�/p>

◍�/span> 桶体内外壁均经镜面抛光，无死角、易出料、易清洗，无交叉污染，符合GMP要求、�/p>

◍�/span> The whole novel design, compact structure, beautiful shape, degree of mixing 99% volume loading factor of 0.8.

◍�/span> Rotating a low profile, smooth operation, reliable performance, easy to operate.

◍�/span> Barrel body wall were characterized by mirror-polished, no dead ends, easy to feed.

----------------------------------------------------------------------------------------------------------------

方锥型混合机技术参�?nbsp; Technical parameters

参数\型号	HF-300	HF-500	HF-1000	HF-1500	HF-2000	HF-3000
混合桶容�?L)	300	500	1000	1500	2000	3000
**装料容积(L)	240	400	800	1200	1600	2400
**装料重量(Kg)	150	250	500	750	1000	1500
主轴转�?rpm)	14	13	12	10	10	8
电机功率（Kw（�/td>	1.5	2.2	4	5.5	7.5	11
整机重量(Kg)	600	750	1200	1650	2000	3000
外形尺寸(动�? �?amp;times;�?amp;times;�?mm)	1850×1280 ×1980	2200×1530 ×2220	2800×2000 ×2820	2930×2330 ×3355	3300×2550 ×3280	3800×3000 ×3800
