WS卧式砂磨朹�/span>

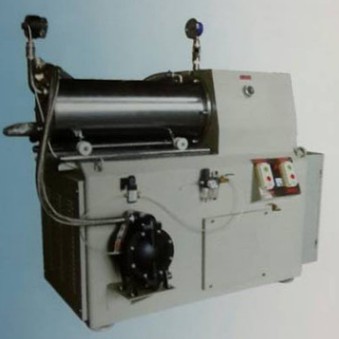

WS Horizontal sand mill

应用颁域：平版印刷油墨、UV由墨、汽车漆、色桨等、�/span>

特点Characters

1.结构稳重、设计精巧、操作简单、�/span>

This machine has stable structure,ingenious cfesign design and convenient operation.

2.清洗、换色、更换研磨珠更方便、�/span>

Cleaning.changing colour and replacing mill bead can be much easier.

3.无残留设计，更好的解决了物料的排出和残留问题、�/span>

Non-vestigital design,it can solve the probfem of materiaf discharging better after milling.

4.硬质合金磨棒，通过合理布局，研磨效率高、�/span>

Hard alloy sticks,with proper redistribution,high-eff lciency milling result can be obtained.

5.内转子、外夹套双重冷却，物料冷却效果好、�/span>

Double cooling of inner rotor and outerjacket ensures effect of material cooling.

6.高耐磨合金衬里，不污染产品、�/span>

Better lining of wear-resistant alloy,without pollution to materials.

7.研磨介质磨耗小，迈行成本低、�/span>

With less abrasion of milling media ancf cost.

技术参数Technical specification

型号／参数Tpye/Parameter WS-2 WS-20 WS-30 WS-50

电机功率Motorpower(Kw) 3 22 30 45

砂磨缸容积Capacity of barrel(L) 2 20 28 46

产量范围Output range(Kg/h) 30-100 100-350 100-450 100-600

冷却水耗量Cooling water(m3/h) 0.8 2.5 2.5 3

压缩空气Compresse dair(rf13/h) 2-6 2-6 2-6 2-6

研磨介质Compresse dair(mm) 1.2-1.4 1.2-1.4 1.2-1.4 1.2-1.4
