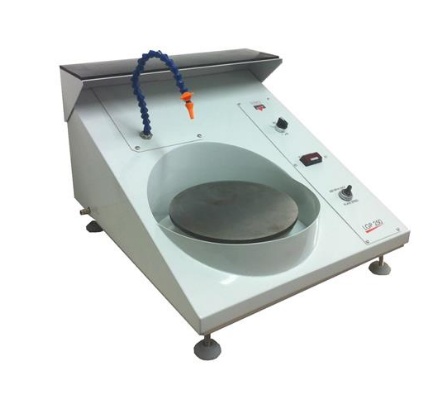

Manual lapping� grinding and polishing machine (LGP 250 )

The LGP 250 is a complete apparatus specifically designed for small-scale lapping� grinding and polishing operations. In low production volume applications� the device is an ideal educational tool for practical laboratory modules� where the goal is to familiarize students with the final thin section preparation steps. The robust� simple to use system provides high quality polished finish for a minimum investment. The disc speed can be varied from 10-600 rpm� during manual grinding� lapping and polishing processes and the final oxide suspension polishing. The LGP 250 allows for lapping on cast iron discs with SiC lapping powder� grinding with magnetic diamond grinding disc available in different grades and polishing with polishing cloths or magnetic polishing disc.

FEATURES:

Variable speed: 10 to 600 RPM

Specimen size: 30x45mm or 60x45 mm (other upon request)

Plate diameter: 250 mm

Dimensions: 526 x 589 x 380 mm

Weight: 50 kg

Power supply: 220 VAC - 50/60 Hz

BENEFITS:

* Vibration free at low speeds

* Easy accessibility for fast cleaning

* Manual lapping and grinding
