RamSpec? Deep-Cooled Benchtop Raman Spectrometer

Overview

BaySpec’s RamSpec? series Raman spectrometers are turn-key solutions designed for best-in-class performance and long-term reliability. Integrating an ultra-sensitive� deep-cooled transmission spectrometer� a class 3B laser source� an optional integrated computer and fiber connectivity� the RamSpec? offers a high-performance scientific-grade Raman system in a rugged� portable benchtop platform.

Key Features

• 532� 785� and 1064 nm lasers (custom wavelengths available)� single or dual

• Ultra-sensitive� deep-cooled CCD or InGaAs detector

• High-throughput� fast (f/2) spectrograph

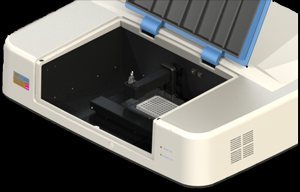

• Automatic well-plates sampling (optional)

Full Detail

Benefiting from our experience manufacturing high-volume spectral monitoring devices for the telecommunications industry� BaySpec’s spectrometers utilize high-throughput� field-proven components at a competitive price. For the first time in instrumentation history an affordable� accurate and ruggedized scientific-grade Raman spectrometer is a reality.

Key Specs

Excitation Wavelength (single or dual options)	532 nm	785 nm	1064 nm
Spectral Range	100�?200 cm-1	100�?200 cm-1	200�?800 cm-1 (200�?200 cm-1optional)
Resolution	4�? cm-1	4�? cm-1	6�? cm-1(10�?5 cm-1for 200-3200 cm-1range)
Laser Power (Adjustable)	0�?00 mW	0�?00 mW	0�?00 mW

The RamSpec? employs a highly efficient volume phase grating (VPG?) as the spectral dispersion element and an deep-cooled� ultra-sensitive CCD or InGaAs array detector� thereby providing high-speed parallel processing and continuous spectral measurement. As an input� the device uses a fiber optic bundle or slit based on customer preferences. The included Spec 2020 software platform allows full control of spectral acquisition as well as library search functionality. The new-generation RamSpec? has optional dual excitation wavelengths and automatic mapping function for well-plates.

Models of BaySpec’s High-performance RamSpec? Benchtop Raman Spectrometers

.Diamond Spectrum Collected with RamSpec 532nm Raman Spectrometer

.Diamond Spectrum Collected with RamSpec 785nm Raman Spectrometer

1064nm Raman Spectrum of Estradiol
