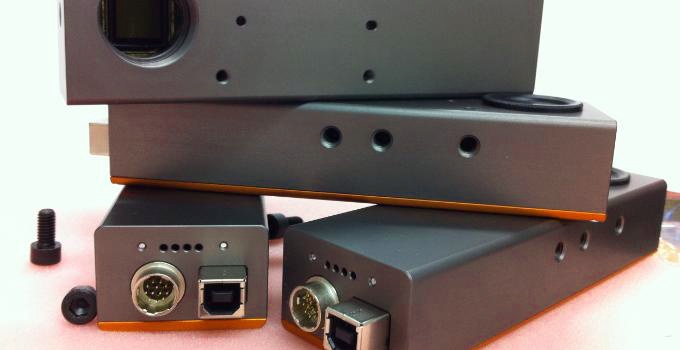

heliCamTMC3- Fast Lock-In Camera
The lock-in camera was originally developed for low coherence interferometry but theheliSenseTMS3sensor and the camera board have found new life with a variety of applications other than OCT for example pump-probe spectroscopy. For ease of integration the Heliotis' core technology is now available as a rigid camera capable of capturing and processing more than 1 million 2D-images per second.
Features
|
||
Software Development Kit The heliCam C3comes with software drivers and programming examples for
|
||
Specification
| Parameter | Value |
| Detector technology | CMOS 180 nm process with pinned photodiode |
| Die Size | 19.71 mm x 16.89 mm |
| Number of Columns | 300 (center 280 usable 2x10 columns are test columns) |
| Number of Rows | 300 (center 292 usable 2x4 rows are test rows) |
| Total number of pixels | 90?00 |
| Column Pitch Xpixel | 39.6 m |
| Row Pitch Ypixel | 39.6 m |
| Photodiode dim. X Xphotodiode | 22.2 m |
| Photodiode dim. Y Yphotodiode | 12.7 m |
| Photodiode area | 282 m2 |
| Optical fill factor | 18.0 % without micro-lenses |
| Pixel Field Width | 11.9 mm |
| Pixel Field Height | 11.9 mm |
| Max. External Frame Rate | 3.8 kHz (2 x 10bit per frame) |
| Max. Demodulation Frequency | 250 kHz (Equals an internal rate of 1M frames per second) |
| Output Resolution | 10 bit |
| Quantum Efficiency | 20-60% between 330 and 400 nm 60-80% between 400 and 720 nm 60-20% between 720 and 900 nm |
