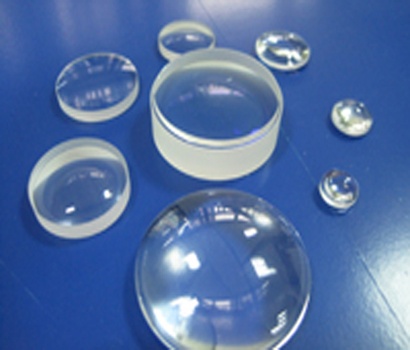

GL12---K9双凸透镜
双凸透镜的特点是焦距为正，由两个相等半径的凸面组成。常用于成像中继系统以及在有限共轭距离下的物体成像。共轭比越大，产生的像差就越大、/span>
材料:精退?/span>K9光学玻璃
设计波长９/span>587.6nm
直径误差９/span>+0.0/-0.1mm
中心厚度误差:0.2mm
面型不规刘/span>:波长/4 @632.8nm
焦距误差＇/span>EFL（/span>:2%
透镜定心误差:3刅/span>
表面光洁?/span>:3~4?/span>
倒边: 0.2mmX450
镀膛/span>:A膜：R<0.5@400~700NM
以下型号是我公司的库存型号，欢迎广大客户进行OEM定制、/span>
产品编号 |
直径Dia. |
焦距EFL＇/span>mm（/span> |
背焦BFL＇/span>mm（/span> |
R1=-R2(mm) |
中心厚度Tc＇/span>mm（/span> |
边厚Te |
镀膛/span> |
＇/span>mm（/span> |
＇/span>mm（/span> |
||||||
GL12-002-002 |
2 |
2 |
1.359 |
1.73 |
1.63 |
1 |
旟/span> |
GL12-002-003 |
2 |
2.5 |
1.962 |
2.3 |
1.46 |
1 |
旟/span> |
GL12-003-003 |
3 |
3 |
2.291 |
2.73 |
1.9 |
1 |
旟/span> |
GL12-003-006 |
3 |
6.3 |
5.833 |
6.27 |
1.36 |
1 |
旟/span> |
GL12-004-004 |
4 |
4 |
3.214 |
3.73 |
2.16 |
1 |
旟/span> |
GL12-005-005 |
5 |
4.5 |
3.783 |
4.28 |
2.65 |
1 |
旟/span> |
GL12-006-006 |
6.3 |
6.3 |
5.065 |
5.86 |
3.34 |
1.5 |
旟/span> |
GL12-006-010 |
6 |
10 |
7.662 |
9.1 |
6 |
4.98 |
旟/span> |
GL12-006-030 |
6 |
30 |
29.241 |
30.62 |
2.3 |
2 |
旟/span> |
GL12-010-010 |
10 |
10 |
8.24 |
9.42 |
4.87 |
2 |
旟/span> |
GL12-010-012 |
10 |
12.5 |
11.24 |
12.27 |
3.63 |
2 |
旟/span> |
GL12-012-012 |
12.5 |
12.5 |
10.514 |
11.89 |
5.55 |
2 |
旟/span> |
GL12-012-025 |
12.5 |
25 |
24.138 |
25.4 |
2.6 |
1.04 |
旟/span> |
GL12-013-018 |
13 |
18.2 |
16.66 |
18 |
4.4 |
1.97 |
旟/span> |
GL12-013-020 |
12.85 |
20 |
18.988 |
20.15 |
3 |
0.9 |
旟/span> |
GL12-016-016 |
16 |
16 |
13.668 |
15.31 |
6.51 |
2 |
旟/span> |
GL12-025-025 |
25 |
25 |
21.846 |
24.19 |
8.96 |
2 |
旟/span> |
GL12-025-040 |
25 |
40 |
38.158 |
40.4 |
5.5 |
1.59 |
旟/span> |
GL12-040-040 |
40 |
40 |
35.236 |
38.85 |
13.59 |
2.5 |
旟/span> |
GL12-050-050 |
50 |
50 |
44.097 |
48.59 |
16.85 |
3 |
旟/span> |
GL12-063-063 |
63 |
63 |
55.88 |
61.39 |
20.4 |
3 |
旟/span> |
GL12-100-100 |
100 |
100 |
89.981 |
98.5 |
31.52 |
4 |
旟/span> |
产品编号 |
直径Dia. |
焦距EFL＇/span>mm（/span> |
背焦BFL＇/span>mm（/span> |
R1=-R2(mm) |
中心厚度Tc＇/span>mm（/span> |
边厚Te |
镀膛/span> |
＇/span>mm（/span> |
＇/span>mm（/span> |
||||||
GL12-002-002-A |
2 |
2 |
1.359 |
1.73 |
1.63 |
1 |
A膛/span> |
GL12-002-003-A |
2 |
2.5 |
1.962 |
2.3 |
1.46 |
1 |
A膛/span> |
GL12-003-003-A |
3 |
3 |
2.291 |
2.73 |
1.9 |
1 |
A膛/span> |
GL12-003-006-A |
3 |
6.3 |
5.833 |
6.27 |
1.36 |
1 |
A膛/span> |
GL12-004-004-A |
4 |
4 |
3.214 |
3.73 |
2.16 |
1 |
A膛/span> |
GL12-005-005-A |
5 |
4.5 |
3.783 |
4.28 |
2.65 |
1 |
A膛/span> |
GL12-006-006-A |
6.3 |
6.3 |
5.065 |
5.86 |
3.34 |
1.5 |
A膛/span> |
GL12-006-010-A |
6 |
10 |
7.662 |
9.1 |
6 |
4.98 |
A膛/span> |
GL12-006-030-A |
6 |
30 |
29.241 |
30.62 |
2.3 |
2 |
A膛/span> |
GL12-010-010-A |
10 |
10 |
8.24 |
9.42 |
4.87 |
2 |
A膛/span> |
GL12-010-012-A |
10 |
12.5 |
11.24 |
12.27 |
3.63 |
2 |
A膛/span> |
GL12-012-012-A |
12.5 |
12.5 |
10.514 |
11.89 |
5.55 |
2 |
A膛/span> |
GL12-012-025-A |
12.5 |
25 |
24.138 |
25.4 |
2.6 |
1.04 |
A膛/span> |
GL12-013-018-A |
13 |
18.2 |
16.66 |
18 |
4.4 |
1.97 |
A膛/span> |
GL12-013-020-A |
12.85 |
20 |
18.988 |
20.15 |
3 |
0.9 |
A膛/span> |
GL12-016-016-A |
16 |
16 |
13.668 |
15.31 |
6.51 |
2 |
A膛/span> |
GL12-025-025-A |
25 |
25 |
21.846 |
24.19 |
8.96 |
2 |
A膛/span> |
GL12-025-040-A |
25 |
40 |
38.158 |
40.4 |
5.5 |
1.59 |
A膛/span> |
GL12-040-040-A |
40 |
40 |
35.236 |
38.85 |
13.59 |
2.5 |
A膛/span> |
GL12-050-050-A |
50 |
50 |
44.097 |
48.59 |
16.85 |
3 |
A膛/span> |
GL12-063-063-A |
63 |
63 |
55.88 |
61.39 |
20.4 |
3 |
A膛/span> |
GL12-100-100-A |
100 |
100 |
89.981 |
98.5 |
31.52 |
4 |
A膛/span> |
