全自动压滤过滤器FLG-type filter
全自动压滤过滤器FLG-type filter的图?/></a></div></div></div>         <div class=
参考报价:
面议
品牌9/dt>
关注度:
6211
样本9/dt>
暂无
型号9/dt>
产地9/dt>
上海
信息完整度:
典型用户9/dt>
暂无
索取资料及报件/a>
认证信息
高级会员 7平/div> 称: 菲立化学工程(上海)有限公司.
证:工商信息已核宝br /> 访问量:65992
产品简今/div>

概述/General Introduction


FLG型压力过滤器是我公司在吸收国内外科研成果和工程实践自足研发的过滤器。FLG型压力过滤器一种新型、高效、节能、精密的新产品,适用于各种悬浮液的固液分离,适用范围广、分离效果好、结构简单、操作方便、安全可靠;广泛应用于洗煤、石油、化工、染料、冶金、医药、食品等领域,也适用于纺织、印染、制药、造纸、皮革、味精等工业废水及城市生活污水处理等各种需要进行固液分离的领域、/span>

FLG-type filter is a highly efficient, energy-saving, and high precision equipment, which is developed independently by our company. It is suitable for solid-liquid separation. It has a wide range of applications, good separation effect, simple structure, easy operation, safe and reliable features. It is widely used in chemical industry, medicine, dyes, food and other industries, alternative filters, centrifuges, suction filter, plate and frame filter, also applies to the textile, printing and dyeing, paper, leather, monosodium glutamate and other industrial waste water and urban sewage treatment which needs solid-liquid separation field.


过滤器内部由高精?16L烧结板过滤网,液体由入口流进,经烧结板过滤网过滤后流出,杂质/固体则被拦截在烧结板过滤网袋中。压力过滤器过滤系统主要基于深层过滤,表面过滤,吸附过滤等三种过滤原理,具有准确、高效、稳定的特点、/span>

Filter is composed of 304 stainless steel cylinder, S-type mixing automatic discharge device,high-precision,316L sintered plate filter and titanium rods. The liquid flows from the feed port, flows through the sintered plate and a titanium rod after filtering screen ,solid is intercepted in the discharge device, to achieve the filtering effect. The filter is based on the principle of surface filtration, with accurate, efficient and stable features.



优势/Advantage




与普通过滤器比较,FLG系列压滤过滤?/strong>具有如下特点9/span>

Compared with the ordinary filter FLG series filter has the following characteristics



1480682588665613.jpg低污染、高环保

Low pollution and high environmental protection

系统采用Y型硅橡胶和氟橡胶气密封圈,密封性好、无气味外溢、杜绝泄漏现象,操作空间环境无污柒/span>

The system use Y-type silicone rubber and fluorine rubber seals ,has features of good sealing, odorless spill ,the operating environment without pollution.


1480682648366730.jpg过滤精度高,使用范围幾/span>

High precision filter and wide use range

分一至三级过滤方式,过滤精密度:0.45-200μm,可用在各种固液分离、活性炭分离等介质压滣/span>

Can be used for a variety of solid-liquid separation, activated carbon separation and other media pressure filter


1480682679469572.jpg有恒温和烘干功能

Has constant temperature and drying function


1480682704611128.jpg操作简单、安全性高

Simple operation ,high security

系统采用气动A、B、C型法兰气动锁紧技术,无需电源、安全可靟/span>

It use pneumatic locking technology ,no power ,safe and reliable


1480682734664882.jpg过滤速度?/span>

High filtration speed

过滤面积大,是原常规过滤器的三倍,过滤速度?/span>

Filtration area is three times the conventional filter, so it has higher filtering speed


1480682753126776.jpg溶剂回收率高

Solvent recovery highly


1480682777363418.jpg利用搅拌自动清洗

Automatic cleaning with stirring

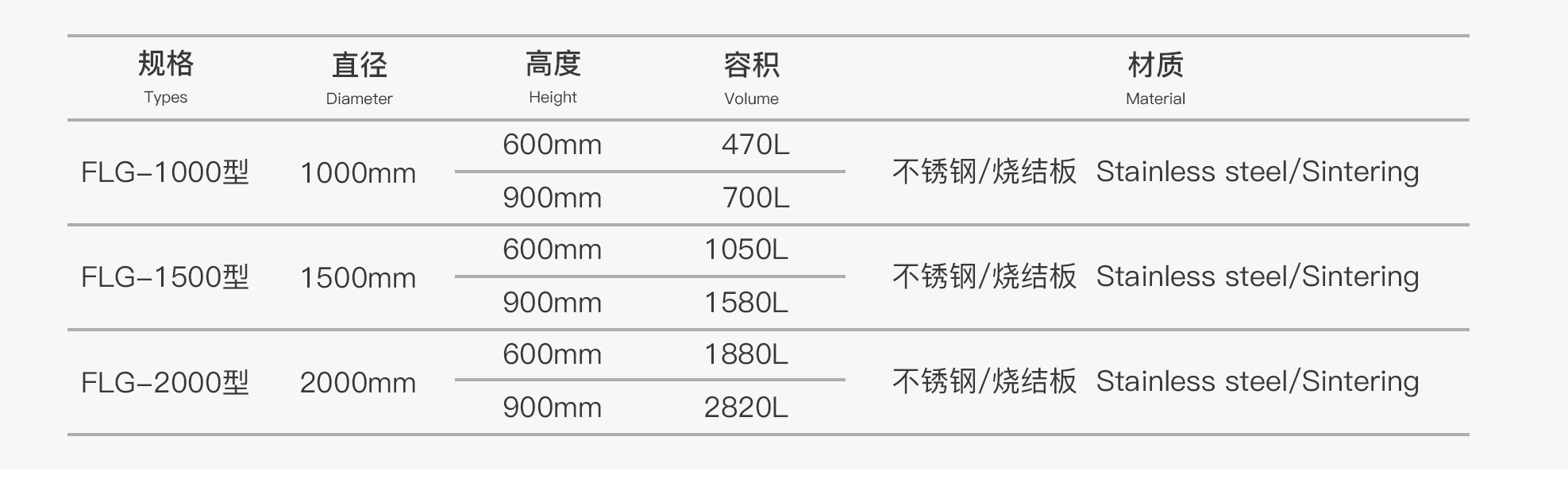

主要技术参?Main Technical Parameters
