单分子检测水平的定量细胞生物学检测仪器、�/span>

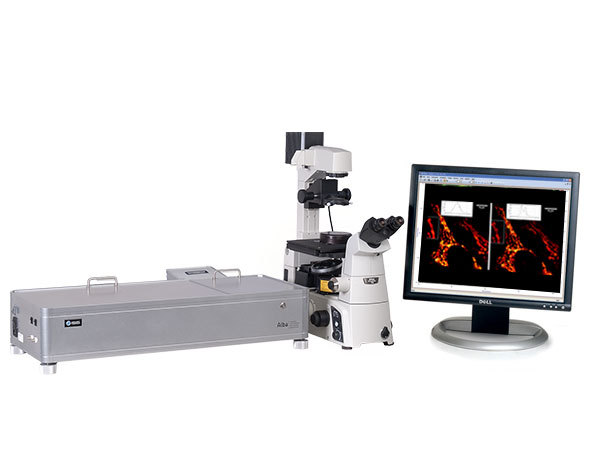

受激发射损耗（STED）是一种强大的显微技术，可以观察到空间分辨率低于衍射极限的荧光结构、�span>Alba-STED使用脉冲激发和脉冲耗尽方法＇�span>pSTED）结合数字频域荧光寿命成像（FastFLIM）来记录时间分辨光子，从而提高图像分辨率并分离具有相同激发波长的两个荧光标记物、�/span>

关键特色 � Alba-STED for FLIM/FFS:

?pSTED (Pulsed excitation and pulsed STED)

?FastFLIM for time-resolved pSTED acquisition

?Improved image resolution using the phasor plot

?Dual-label excitation

?Fast image acquisition (dwell time: 0.2 ��s)

?High dynamic range (signal up to 60 million counts/s)

测试实例展示Alba-STED for FLIM/FFS

Confocal (left) vs. pSTED (right) images of the actin labeled with the SiR dye in fixed glia cells� acquired by FastFLIM.

Confocal (left) vs. pSTED (right) images of the actin labeled with the SiR dye in fixed glia cells� acquired by FastFLIM.

Confocal images of 60nm fluorescence beads (left); pSTED images (middle); sharpening the pSTED image using a binary filter based on the phasor plots (right).

Dual labels can be separated using pSTED and FastFLIM. Atto 647N and Atto 655 were used as labels; they both are excited by the 640 nm laser. The two dyes are first separated using the phasor plots� and then assigned with two different false colors (Atto 647N - yellow� Atto 655 - purple) to produce the processed and merged pSTED image of the two labels.

参考论文：

Monomeric cohesin state revealed by live-cell single-molecule spectroscopy.

Liu� W.� Biton� E.� Pathania� A.� Matityahu� A.� Irudayaraj� J.� Onn� I.

EMBO Rep. 2019 Dec 29:e48211. doi: 10.15252/embr.201948211. [Epub ahead of print]

Photon-separation to enhance the spatial resolution of pulsed STED microscopy.

Tortarolo� G.� Sun� Y.� Teng� K.W.� Ishitsuka� Y.� Lanzan��� L.� Selvin� P.R.� Barbieri� B.� Diaspro� A.� Vicidomini� G.

Nanoscale. 2019 Jan 9. doi: 10.1039/c8nr07485b. [Epub ahead of print]

A straightforward STED-background corrected fitting model for unbiased STED-FCS analyses.

Wang� R.� Brustlein� S.� Mailfert� S.� Fabre� R.� Fallet� M.� Sivankutty� S.� Rigneault� H.� Marguet� D.

Methods. 2018 May 1;140-141:212-222. doi: 10.1016/j.ymeth.2018.02.010. Epub 2018 Feb 14.

A Novel Pulsed STED Microscopy Method Using FastFLIM and the Phasor Plots

Sun� Y.，Tortarolo G.� Teng� K.-W.� Ishitsuka� Y.� Coskun� U.C.� Liao� S.-C.� Diaspro� A.� Vicidomini� G.� Selvin� P.R.� Barbieri� B.

Proc. SPIE 10069� Multiphoton Microscopy in the Biomedical Sciences XVII� 100691C (February 21� 2017)
