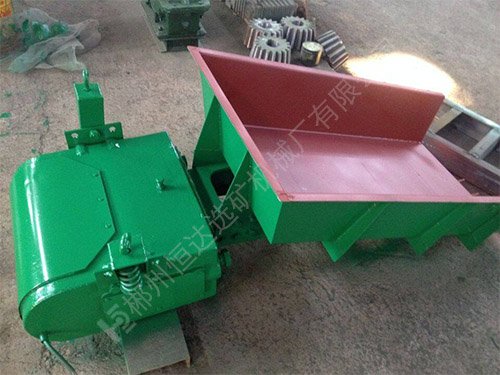

GZ系列电磁振动给料机是一种较先进的给料装置。广泛应用于水泥、矿山、冶金、化工、煤炭等各行业中，在生产流程中以把非粘性的颗粒或粉末物料从储料仓或料斗中定量、均匀、连续地送到受料装置中去，可无级调节给料量，实现生产流程的集中控制和自动控制、�br/>　　它具有（ 1 ）体积小，重量轻，结构简单，安装方便，无转动部件不需润滑，维修方便，运行费用低。（ 2 ）电磁振动给料机由于运用了机械振动学的共振原理，双质体在低临界近共振状态下工作，因而消耗电能少。（ 3 ）由于可以瞬时地改变和启闭料流，所以给料量有较高的精度。（ 4 ）本系列电磁振动机的控制设备采用了可控硅半波整流线路，因此在使用过程中可以通过调节可控硅开放角的办法方便地无级地调节给料量，并可以实现生产流程的集中控制和自动控制。（ 5 ）由于给料槽中的物料在给料过程中连续地被抛起，并按抛物线的轨迹向前进行跳跃运动，因此给料槽的磨损较小。（ 6 ）本系列电磁机不适用于具有防爆要求的场合、�br/>　　GZ electro-vibrating feeder series is an advanced feeding device. It is widely used in cement, mining, metallurgy, chemicals, coal and other industries, it transfer the non-sticky powder or granular materia from the storage silo or hopper to the receiving devices in quantitative, well-distributed, continuous in the process of production and adjust the quantity of feeding at all levels to achieve the centralized control and automatic control of the production processes.
　　It has(1) small size, light weight, simple structure, easy to install, non-rotating components without lubrication, easy to maintain, low operating costs. (2) Electro-vibrating feeder due to the use of scientific principle of mechanical resonance vibration, double-plastid work in the condition which close to the critical state of resonance, so it consumes less power. (3) Due to the instantaneous change and hoist of flow, so the charge has high degree of accuracy. 4) This series of electro-vibrating feeders� control device using silicon-conditioning half-wave rectifier circuit, so it can adjust the opening angle of silicon-conditioning and easily adjust the feeding quantity at all levels, and can achieve the centralized control and automatic control of the production process. (5) because the feeding materials are being tossed continuously, and according to the parabolic trajectory do leap forward movement, so the slot will has less wear and tear (6) This series of electro-vibrating does not apply to the occasion with explosion-proof requirement.
　　主要型号及技术参�?
　　MAIN MODELS AND TECHNICAL PARAMETERS:

类型Type	型号 Model	给料能力 Feeding capability(t/h)	给料粒度 Feed fraction(mm)	双振幄�/p> Double-amplitude(mm)	电压 Voltage(V)	电流 Electric current(A)	功率 Power(W)	配套控制器型� Type of mating director	外型尺寸 (长×宽×�?Outside measurement(L×W×H)(mm)	重量 Weight(kg)
普通型Conventionaltype	GZ0	0-2	�?0	1.5	220	0.19	12	GZK-2	656×229×298	22
	GZ1	0-5	�?0	1.75	220	0.95	60	GZK-2	855×335×372	72
	GZ2	0-10	�?0	1.75	220	2.14	150	GZK-2	1155×442×536	155
	GZ3	0-25	�?5	1.75	220	3.4	200	GZK-2	1370×580×624	225
	GZ4	0-50	�?00	1.75	220	6.5	450	GZK-3	1607×665×756	476
	GZ5	0-100	�?25	1.75	220	10	650	GZK-3	1770×760×970	631
封闭型Enclosed type	GZ0F	0-1.5	�?0	1.75	220	0.19	12	GZK-2	656×229×298	28
	GZ1F	0-4	�?0	1.75	220	0.95	60	GZK-2	855×335×372	85
	GZ2F	0-8	�?0	1.75	220	2.14	150	GZK-2	1155×442×526	168
	GZ3F	0-20	�?0	1.75	220	3.4	200	GZK-2	1370×580×624	240
	GZ4F	0-40	�?0	1.75	220	6.5	450	GZK-3	1607×665×756	500
	GZ5F	0-80	80	1.75	220	10	650	GZK-3	1770×760×970	680

　　直线振动给料朹�br/>　　LINER VIBRATING FEEDER
　　直线振动给料机具有振动平稳、工作可靠、寿命长等特点，可为破碎机械连续、均喂料，并对物料进行筛分，广泛用于选矿、建材、硅酸盐和化学工业中的破碎、筛分联合设备中、�br/>　　Liner vibrating feeder advantages are: smooth vibration, reliable operation and long service life. It can realize continuous and even material feeding for crushers in sandstone production line and make rough screening for materials. Widely applied in combined operation of crushing and screening in the industries like metallurgy, mine, ore dressing, building materials, chemicals, etc.
　　主要型号及技术参�?
　　MAIN MODELS AND TECHNICAL PARAMETERS:

型号Model	**进料粒度 Max. feeding size(mm)	处理能力Processing capacity(t/h)	电动机功玆�/p> Motor power(kw)	安装倾角 (°)	总重野�/p> Total weight(kg)	槽体尺寸 Trough size(mm)	外形尺寸 （长×宽×高）Dimensions(L×W×H)(mm)
GZD-650×2300	300	80	1.1 ×2	10	2798	650×2300	2300×1360×780
GZD-750×2500	350	100	1.1×2	10	3260	750×2500	2500×1460×780
GZD-850×3000	400	120	3×2	10	3607	850×3000	3110×1800×1600
GZD-1000×3600	500	150	5.5×2	5	3895	1000×3600	3850×1950×1630
GZD-1100×4200	580	240	5.5×2	5	4170	1100×4200	4400×2050×1660
GZD-1100×4900	580	280	7.5×2	5	4520	1100×4900	5200×2050×1700
GZD-1300×4900	650	450	11×2	5	5200	1300×4900	5200×2350×1750
GZD-1500×5600	1050	450-800	12×2	10	7500	1500×5600	5700×2000×1750
