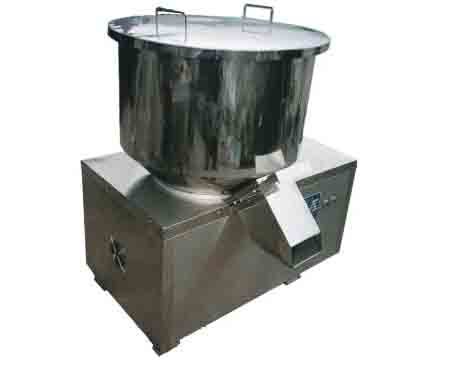

View-the configuration sketch, the machine is composed of transmission part (1,7),oar-blade set (2,4), cylinder(3), material-discharger(5), foundation(6) and so forth. Transmission part is composed of motor 1 and reducer 7. It can drive the oar-blade set circumrotating at the reasonable rotate speed.

Oar-blade set is composed of main oar-blade 4 and subsidiary one 2. which lean and stagger some angle with the level and are laid relatively in direction. While the transmission part drives oar-blade set rotating along the N direction, the main and subsidiary. Oar-blade will drive the raw materials moving circumferentially, the main oar-blade drives a part of raw materials to exalt along the N1 direction, the subsidiary one does some materials to drop along the N2 direction to fill up the rear of oar-blade and thus forms a part-recycle for the raw materials. Due to the abovementioned complex running recycle, the raw materials are mixed evenly.

Cylinder 3 is used to load the raw materials.

Material-discharger 5 is used to control the outflow and emitting of the materials.

Foundation 6 is used to fixation and support the weight of equipment.
