主要参数
规格型号（点击型号查看规格书（/p> |
中心频率 (MHz) |
带宽 (MHz) |
插损 (dB max) |
波动 (dB max.) |
回损 (dB min.) |
抑制 (dB min.) |
尺寸 (mm) |

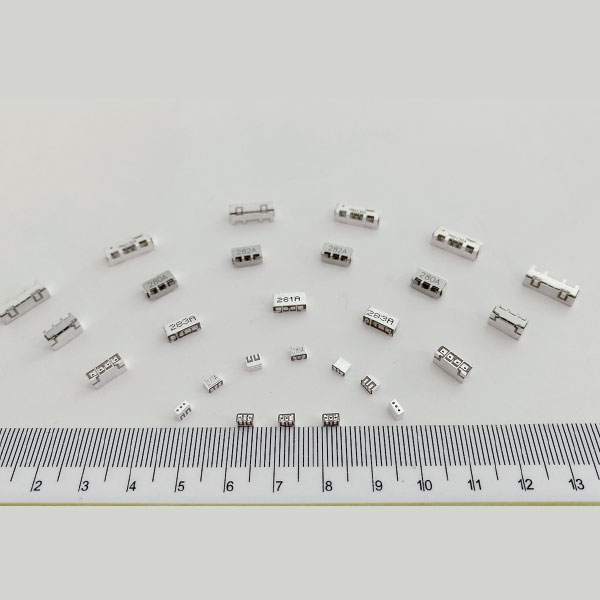

CMF4R0280A |
5250.0 |
160 |
3.0 |
1.2 |
12 |
50@5490~5835MHz |
8.2*5.3*3.3 |
CMF4R0281A |
5250.0 |
160 |
2.3 |
1.2 |
12 |
40@5490~5835MHz |
8.2*4*3 |
CMF4R0276A |
5235.0 |
180 |
2.5 |
1.3 |
10 |
50@5490~5850MHz |
8.6*3.8*2.9 |
CMF3R0277A |
5240.0 |
200 |
1.5 |
1.0 |
10 |
30 @ 2400~2700MHz |
3.6*2.8*1.85 |
CMF3R0279A |
5245.0 |
190 |
3.0 |
1.2 |
10 |
30 @ 2400~2500MHz |
3.6*2.8*1.85 |
25 @ 5480~5550MHz |
|||||||
30 @ 5550~5900MHz |
|||||||
CMF6R0344A |
5502.5 |
665 |
2.8 |
2.3 |
10 |
50 @5935~6200MHz |
9.05*5*3.8 |
50 @6200~7125MHz |
|||||||
CMF7R0342A |
5502.5 |
665 |
2.5 |
2.3 |
10 |
45 @5935~6200MHz |
12.8*4.4*3.8 |
50 @6200~7125MHz |
|||||||
CMF4R0282A |
5662.5 |
345 |
3.0 |
1.5 |
12 |
50 @5170~5330MHz |
8.2*5*3.3 |
CMF4R0283A |
5662.5 |
345 |
2.3 |
1.0 |
12 |
40 @5170~5330MHz |
8.2*3.7*3 |
CMF3R0284A |
5665.0 |
370 |
3.0 |
1.0 |
10 |
30 @ 2400~2500MHz |
3.6*2.6*1.85 |
25 @5150~5340MHz |
|||||||
CMF3R0285A |
5670.0 |
380 |
1.5 |
1.0 |
10 |
25 @2400~2700MHz |
3.6*2.6*1.85 |
21 @5140~5340MHz |
|||||||
CMF4R0286A |
5670.0 |
360 |
2.5 |
1.3 |
10 |
50 @5150~5330MHz |
8.6*3.45*2.9 |
CMF6R0345A |
6530.0 |
1190 |
2.8 |
2.3 |
10 |
50 @5170~5490MHz |
9.05*4.9*3.8 |
50 @5490~5835MHz |
|||||||
CMF7R0343A |
6530.0 |
1190 |
3.0 |
2.3 |
10 |
50 @5170~5490MHz |
12.8*4.4*3.8 |
45 @5490~5835MHz |
|||||||
CMF7R0346A |
5492.5 |
685 |
1.5 |
1.5 |
13 |
48 @5925~5990MHz |
8.8*4.75*2.35 |
CMF7R0347A |
6525.0 |
1200 |
2.3 |
1.8 |
11 |
48 @ 5640~5835MHz |
9.36*3.63*2.35 |
CMF7R0352A |
5442.5 |
585 |
1.5 |
1.5 |
12 |
55 @5925~7125 MHz |
8.8*4.75*2.35 |
CMF7R0353A |
6450.0 |
1050 |
2.5 |
1.5 |
11 |
57 @ 5150~5725 MHz |
9.36*3.63*2.35 |
