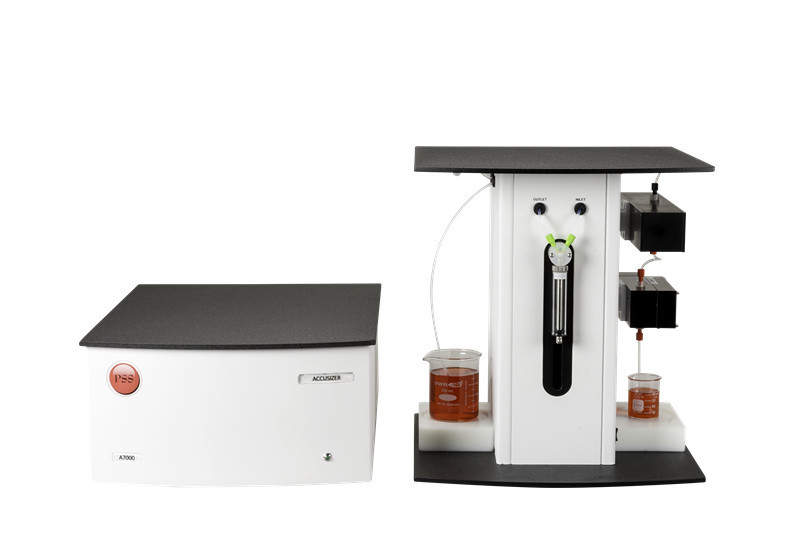

高浓度计数粒度分析仪AccuSizer A9000 FX介绍

高浓度计数粒度分析仪AccuSizer A9000 FX集原样进样检测、自动稀释等全自动检测功能于一身，为用户提供可方便、快捷、高效、可靠的粒径分析。FX系列*小可以测试计数到150nm，浓度高�?0million�?mL的样品。可以满足蛋白质聚集和高浓度slurry的测试要求，是PSSzui�?全能性的颗粒计数器系列产品、�/span>

应用领域:蛋白� CMP slurry，Inks 墨水涂料，乳剂、过滤器等行业、�/span>

工作原理９�/strong>

FX采用单颗粒光学传感技术和zui新的传感器FX sensor 来完成对颗粒信息的采集、�/span>

FX工作原理及其模型如下:

脉冲信号由粒子的大小和轨迹决宙�/span>

?入射光强越强，脉冲信号越大，DVLE

?给定大小的粒子根据路径具有非常宽广的的脉冲信号，

?通过回旋的脉冲信号得到粒子分布、�/span>

技术参�?/strong>

一�?/span>工作条件

1.1 电源�?20V

1.2 室温操作情况：温� 5℃～40℃，湿度 20�?0%、�/span>

1.3放置条件９�/span>拥有超净�?/span>的实验室或GMP生产车间、�/span>

二、技术参�?/span>

2.1符合幵�/span>超过美国药典USP 788，USP789，USP1788的全�?/span>现行要求，符� EP＋�/span>CP2015版等多种药典；符合ISO16232，NAS1638等国际标准；月�/span>欧盟CE认证证书

2.2检浊�/span>粒径范围９�/span>0.15um � 400um

2.3粒径通道数：512�?/span>数据通道＋�/span>32�?/span>自定义通道

2.4流量� 5mL/min�?20 mL/min＋�/span>流速准确�?/span>�?#177;1%

2.5样本温度�?-60ℂ�/span>

2.6进样体积９�/span>100%＋�/span>体积误差玆�/span>９�/span>�?%;

2.7注射器可选择1mL�?.5mL�?mL�?0mL�?5mL�?0mL

2.8进样野�/span>９�/span>50uL -1000mL

2.9zui髗�/span>浓度９�/span>每毫卆�/span>1.8*10⁶颖�/span>

2.10感器分辨率：大于98%，粒径准确性：��1%� 计数准确�?/span>９�/span>；�/span>2.5%

2.11检浊�/span>时间９�/span>小于1min

2.12 传感器具备自动校准功胼�/span>＋�/span>Calibration time小于 30min、�/span>

2.13供电９�/span>120-240V� 50HZ-60HZ

2.14仪器尺寸重量９�/span>

采样�?/span>９�/span>10Kg�长：33cm宼�/span>９�/span>33cm髗�/span>９�/span>30cm

计数�?/span>９�/span>11Kg�长：46cm宼�/span>９�/span>30cm髗�/span>９�/span>18cm

三、主要配�?/span>

• 不溶性微粒测定仪主机包含９�/span>

• AccuSizer A2000-USP注射进样模块９�/span>

Includes: Syringe sampler with sensor mounting plate and magnetic stirrer.

注射进样器，配有传感器固定台和磁力搅拌器：�/span>

注射器为2.5ml＋�/span>10mL�25ml、�/span>

• AccuSizer A2000 LE400-0.5 Light Obscuration Sensor光消减传感器９�/span>

Includes: Dynamic range of 0.5-400 microns� 1000 x 400 micronflow cell� can handle flow rates of up to 120 cc/min

粒径范围�?.5微米 � 400微米�?000 x 400微流速控制器，可以控制流速到120cc/分、�/span>

• AccuSizer A2000-USPcounter

AccuSizer A2000微粒计数器、�/span>

• AccuSizerA2000-USP Controller/Analyzer Software for Windows

Includes: Software compatible with Windows XP or better operatingsystems.

A2000控制分析软件，软件兼容windows XP及以上版本系统、�/span>

• AccuSizer A9000FXnano-SIS Extended Range Optical Particle Sizer.

AccuSizerA9000FXnano-SIS 光学粒径检测器模块９�/span>

Includes: Two Fast Pulse Counters� one for FX-Nano sensor one for LE sensor� 1 Mhz A/D converter� 14 bit Resolution� Multiple DSP signal processor capable ofperforming patented pulse height analysis� can be controlledby PLC or other digital controllers.

配有双重快速脉冲微粒计数器，一是为FX-Nano传感�?/span>，二是为LE型号传感�?/span>，二者可同时捕捉搜集极小微粒信息，并计算微粒数目；快速脉冲计数器�? MHz A/D converter� 14-bit resolution，有多数字信号的处理� / 接口板，提供多通道的快速检测功� (MCA)，能够受控于PLC和其它数控装置、�/span>

• AccuSizer A9000FXnano-SIS Light Obscuration Sensor.

AccuSizer A9000FXnano-SIS消减传感器：

Includes: Dynamic range of 0.15 - 20 microns nominal� 200times higher coincidence limit� can handle flow rates of upto 15 cc/min.

粒径范围�?.15微米 �20微米，检测限度高于其它传感器200倍，可以控制流速到15cc/分、�/span>

• AccuSizer Model A9000 LE Light Obscuration Sensor.

AccuSizer Model A9000LE光消减传感器９�/span>

Includes: Dynamic range of 0.5 - 400 microns� 400 x 1000 micron flow cell� can handle flow rates of up to 120 cc/min.

粒径范围�?.5微米 �400微米�?000 x 400微流速控制器，可以控制流速到120cc/分、�/span>

• AccuSizer A9000FXnano-SIS Optical Controller/Analyzer Windows Software.

AccuSizer A9000FXnano-SIS控制分析软件９�/span>

Includes: Software compatible with Windows XP or later Operating System� blends each sensor range into a continuous PSD.

兼容Windows XP系统及以上版本系统，可以兼并两个传感器的粒径分布信息、�/span>

• AccuSizer A9000FXnano-SIS注射进样模块９�/span>

Includes: Syringe sampler with sensor mounting plate and magnetic stirrer.

注射进样器，配有传感器固定台和磁力搅拌器：�/span>

注射器为2.5mL�?0mL�25ml、�/span>

• AccuSizer A9000FXnano-SIS counter

AccuSizerA9000SIS- FXnano微粒计数器、�/span>

• AccuSizer A9000FXnano-SISController/Analyzer Software for Windows

Includes: Software compatible with Windows XP or better operatingsystems.

A9000SIS控制分析软件，软件兼容windows XP及以上版本系统、�/span>
