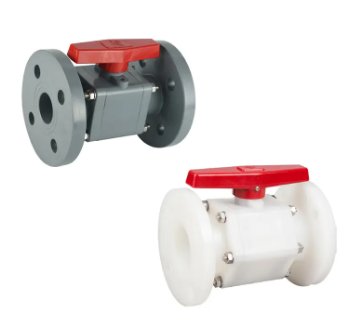

首页 > 产品中心 > 气动球阀 > 高强球阀
材质配件?/p>
编号No. |
零部仵/p> |
材料 |
1 |
法兰 |
FRPP,PPH,CPVC,PVDF |
2 |
阀座密?/p> |
EPDM/FPM+PTFE |
3 |
琂/p> |
FRPP,PPH,CPVC,PVDF |
4 |
阀佒/p> |
FRPP,PPH,CPVC,PVDF |
5 |
阀杅/p> |
FRPP,PPH,CPVC,PVDF |
6 |
手柄 |
ABS |
7 |
阀杆O型圈 |
EPDM,FPM |
8 |
法兰O型圈 |
EPDM,FPM |
9 |
螺柱螺母 |
钢，不锈钡/p> |
FRPP高强球阀仅DN80-DN150
产品尺寸表（mm（/p>
DN |
D1 |
D |
L |
h |
n |
φ |
工作压力(Mpa) |
||||||
HG/DIN |
ANSI |
HG/DIN |
ANSI |
HG/DIN |
ANSI |
HG/DIN |
ANSI |
FRPP/PPH |
UPVC/CPVC |
PVDF |
|||
25 |
115 |
85 |
79 |
172 |
172 |
16 |
4 |
4 |
14 |
16 |
1.0 |
1.6 |
1.6 |
32 |
135 |
100 |
89 |
175 |
175 |
16 |
4 |
4 |
18 |
16 |
1.0 |
1.6 |
1.6 |
40 |
145 |
110 |
98 |
182 |
182 |
18 |
4 |
4 |
18 |
16 |
1.0 |
1.6 |
1.6 |
50 |
160 |
125 |
121 |
189 |
189 |
18 |
4 |
4 |
18 |
19 |
1.0 |
1.6 |
1.6 |
65 |
180 |
145 |
140 |
218 |
218 |
20 |
4 |
4 |
18 |
19 |
1.0 |
1.0 |
1.0 |
80 |
195 |
160 |
152 |
244 |
244 |
20 |
8* |
4 |
18 |
19 |
1.0 |
1.0 |
1.0 |
100 |
215 |
180 |
190 |
297 |
297 |
23 |
8 |
8 |
18 |
19 |
1.0 |
1.0 |
1.0 |
125 |
245 |
210 |
216 |
390 |
390 |
24 |
8 |
8 |
18 |
22 |
0.8 |
1.0 |
1.0 |
150 |
280 |
240 |
241 |
390 |
390 |
24 |
8 |
8 |
22 |
22 |
0.8 |
1.0 |
1.0 |
